Hydraulic Cylinder PUSH/PULL Calculator
Calculate the push and pull forces of your hydraulic cylinder based on bore diameter, rod diameter, and pressure
inches
inches
PSI
Results
Push Force
0
lbs
Pull Force
0
lbs
Force Ratio
0
Push/Pull
Disclaimer: This calculator is for informational purposes only. All applications should be reviewed by an engineer for safety and design criteria before implementation.

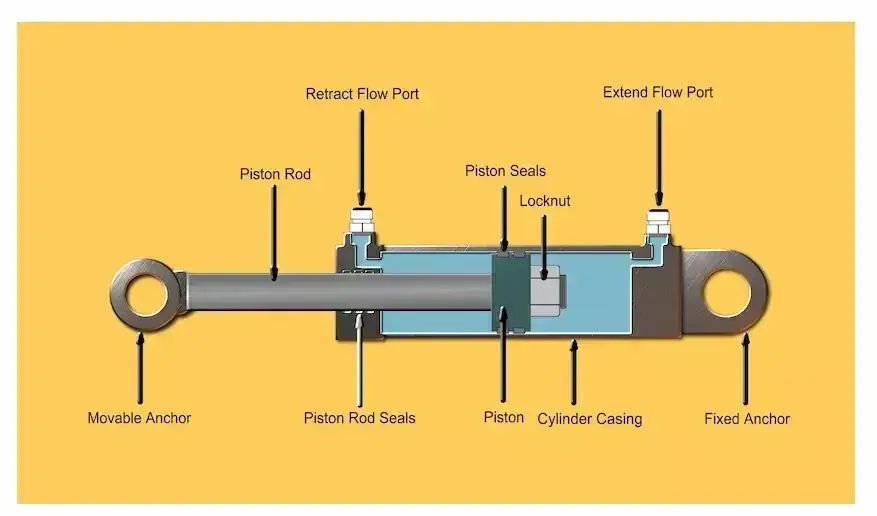

Hydraulic cylinders can indeed push and pull loads. Double-acting cylinders, in particular, are designed for both pushing and pulling, utilizing two fluid ports to extend and retract the piston rod.

Here’s a breakdown:
- Pushing:When hydraulic fluid is pumped into one end of the cylinder, it extends the piston rod, exerting a pushing force.
- Pulling:When hydraulic fluid is pumped into the opposite end of the cylinder, it retracts the piston rod, exerting a pulling force.
- Double-acting cylindersare versatile, allowing for both push and pull operations.
- Single-acting cylinderstypically extend the piston rod using hydraulic pressure but rely on a spring or external force for retraction.
- Force differences:While both push and pull actions are possible, the force exerted during retraction (pulling) may be less due to the reduced area of the piston rod side.
