Sprocket Diameter Calculator
Calculate the pitch diameter and outer diameter of sprockets for chain drives
How to Use This Calculator
- Enter the chain pitch (distance between pin centers)
- Enter the number of teeth on the sprocket
- Enter the roller diameter (diameter of chain rollers)
- Click “Calculate” to get the pitch and outer diameters
Calculation Formulas

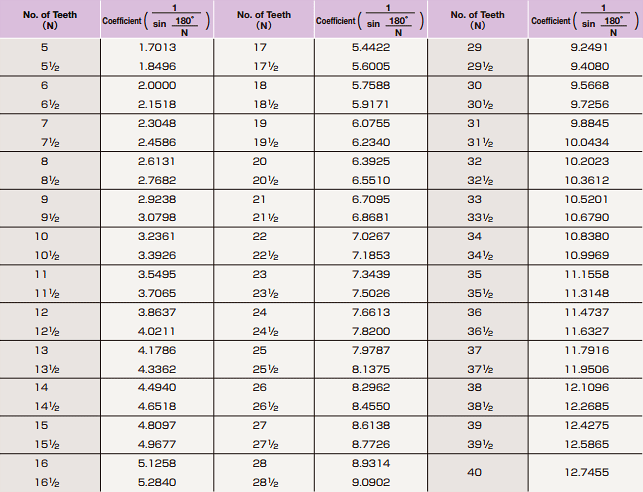

Pitch Diameter (PD): PD = P / sin(180° / N)
Outer Diameter (OD): OD = P × (0.6 + cot(180° / N))
Where:
P = Chain pitch
N = Number of teeth
D = Roller diameter
Frequently Asked Questions
What is chain pitch?
Chain pitch is the distance between the centers of two adjacent pins in a chain. It’s the most important dimension of a chain and determines the size of the sprocket.
Why is sprocket diameter important?
Sprocket diameter affects the speed ratio between driving and driven sprockets, the wrap angle of the chain, and the overall size of your drive system. Correct diameter ensures proper chain engagement and longevity.
Can I use this calculator for bicycle sprockets?
Yes, this calculator works for any type of chain sprocket including bicycle sprockets, as long as you know the chain pitch, number of teeth, and roller diameter.
The diameter of a sprocket is a crucial dimension, often referred to as the pitch diameter, which is the diameter of the circle defined by the centers of the chain pins when the sprocket is engaged with a chain. It’s related to the number of teeth and the chain pitch (the distance between the pins on the chain).
Key Concepts:
- Pitch Diameter: The diameter of the circle that the chain rollers follow as they engage with the sprocket.
- Number of Teeth: The total count of teeth on the sprocket.
- Chain Pitch: The distance between the pins on the chain.
Calculating Pitch Diameter:
A common formula for calculating the pitch diameter is:
Pitch Diameter = (Number of Teeth / Pitch) * 25.4Where:
- Number of Teeth is the total number of teeth on the sprocket.
- Pitch is the chain pitch, typically in inches.
- 25.4 is the conversion factor from inches to millimeters.

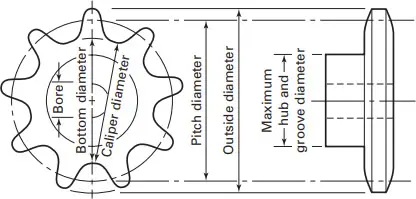

Other Important Diameters:
- Outside Diameter: The diameter of the sprocket measured across the tips of the teeth. This is important for ensuring proper clearance with other components.
- Bottom Diameter: The diameter of the circle tangent to the bottoms of the tooth spaces.
- Caliper Diameter: Used for sprockets with an odd number of teeth where the bottom diameter can’t be measured directly, it’s the measurement across the tooth spaces nearly opposite each other.
Examples:
- A sprocket with 25 teeth and a 1/4 inch pitch has a pitch diameter of approximately 2.5 inches.
- A sprocket with 40 teeth and a 1/2 inch pitch has a pitch diameter of approximately 6.36 inches.
Note: Some manufacturers may have slightly different tooth profiles or dimensions, so it’s always a good idea to consult the manufacturer’s specifications for accurate measurements.
